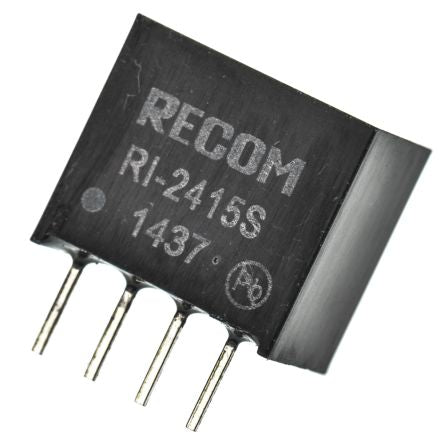

Recom RI 2W Isolated DC-DC Converter Through Hole, Voltage in 21.6 → 26.4 V dc, Voltage out 15V dc [RI-2415S]; 166-9037
by Recom
0₫
Mã kho: 1669037
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 500V ac |
| Power Rating | 2W |
| Output Current | 133mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Length | 11.5mm |
| Series | RI |
| Depth | 10.2mm |
