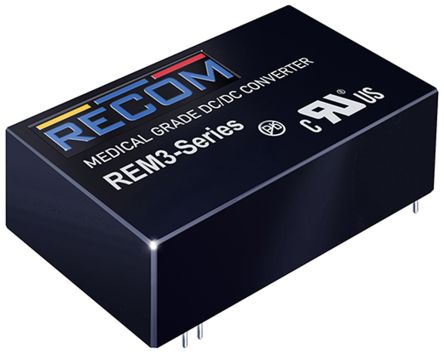

Recom REM3 3W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 5V dc [REM3-2405S/A]; 166-6503
by Recom
0₫
Mã kho: 1666503
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Output Voltage Adjustment Range | ±10% |
| Input Voltage Range | 18 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 5kV ac |
| Power Rating | 3W |
| Output Current | 600mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 84 %, 84.5 % |
| Package | DIP 24 |
| Minimum Temperature | -40°C |
| Load Regulation | ±0.2% |
| Maximum Temperature | +105°C |
| Width | 20.3mm |
| Standards Met | ANSI/AAMI ES60601-1 Standard, ANSI/AAMI File Number E314885-A11, CAN/CSA Medical C22.2 No. 60601-1:08 Standard, CAN/CSA Medical File Number E314889, CB Medical File Number E314885-A11, CB Medical IEC-60601-1 Standard, CE Certified, Conducted Immunity EN61 |
| Length | 31.8mm |
| Series | REM3 |
| Depth | 10.4mm |
