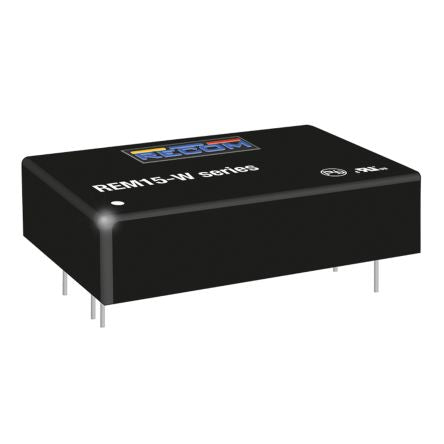

Recom REM15-W 15W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out 5V dc Medical [REM15-2405SW]; 180-9329
by Recom
0₫
Mã kho: 1809329
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 5 kV ac, 250 V dc |
| Power Rating | 15W |
| Output Current | 3A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.87 |
| Medical Approved | Yes |
| Package | 1.6 x 1 in |
| Load Regulation | 0.002 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Width | 25.4mm |
| Depth | 10.2mm |
| Length | 40.6mm |
| Standards Met | ANSI/AAMI ES60601-1 (2005/R2012 + A1:2012), CAN/CSA-C22.2 No. 60601-1:14, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1, CRUus E314885, E196683, IEC60601-1:2005, UL60950-1, UL62368-1, 2012 |
| Series | REM15-W |
