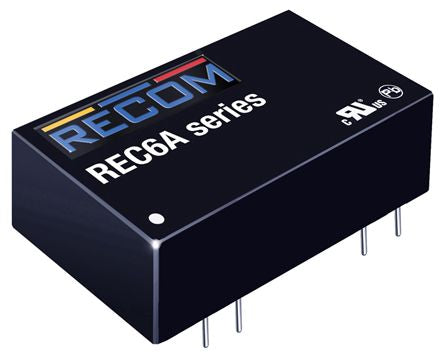

Recom REC6A 6W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 5V dc [REC6A-2405SW/H2]; 139-2814
by Recom
0₫
Mã kho: 1392814
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 18 → 36 V dc |
| Input Voltage Nominal | 18 → 36 V dc |
| Isolation Voltage | 2kV dc |
| Power Rating | 6W |
| Output Current | 1.2A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.8 |
| Package | DIP 24 |
| Load Regulation | ±0.6% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +65°C |
| Depth | 10.2mm |
| Length | 31.8mm |
| Series | REC6A |
| Width | 20.3mm |
