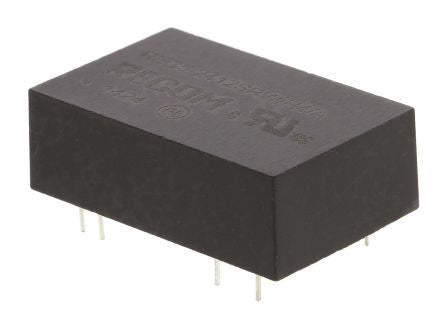

Recom REC5 5W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 12V dc Medical Approved [REC5-2412SRWH4/A]; 473-5491
by Recom
0₫
Mã kho: 4735491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 18 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 4kV dc |
| Power Rating | 5W |
| Output Current | 420mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Medical Approved | Yes |
| Package | DIP |
| Minimum Temperature | -25°C |
| Maximum Temperature | +75°C |
| Series | REC5 |
| Depth | 10.2mm |
| Length | 32mm |
