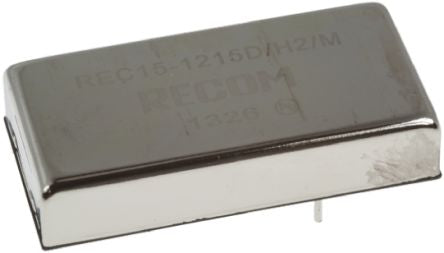

Recom REC15 15W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out ±15V dc [REC15-2415DZ/H2/M]; 166-6691
by Recom
0₫
Mã kho: 1666691
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1 kV ac, 2 kV dc |
| Power Rating | 15W |
| Output Current | ±500mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.86 |
| Package | 1 x 2 in |
| Minimum Temperature | -40°C |
| Load Regulation | ±1.2% |
| Maximum Temperature | +65°C |
| Series | REC15 |
| Depth | 10.2mm |
| Length | 50.8mm |
