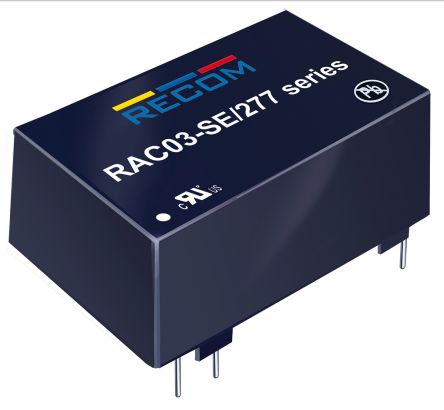

Recom, 3W Embedded Switch Mode Power Supply SMPS, 24V dc, Encapsulated [RAC03-24SE/277]; 166-6701
by Recom
0₫
Mã kho: 1666701
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24 V dc |
| Output Current | 125mA |
| Power Rating | 3W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 305 V ac, 120 → 430 V dc |
| Mounting Type | Through Hole |
| Package Type | Encapsulated |
| Length | 38.25mm |
| Width | 24.35mm |
| Depth | 17.4mm |
| Weight | 28g |
| Efficiency | 0.8 |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
