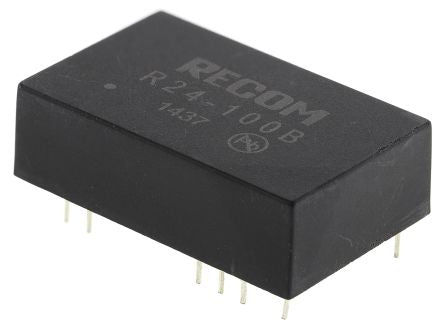

Recom 5W Isolated DC-DC Converter Through Hole, Voltage in 21 → 27 V dc, Voltage out 55 → 135V dc [R24-100B]; 166-6686
by Recom
0₫
Mã kho: 1666686
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 55 → 135V dc |
| Input Voltage Range | 21 → 27 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 5W |
| Output Current | 50mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.84 |
| Package | DIP 24 |
| Load Regulation | ±0.5% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +70°C |
| Length | 31.8mm |
| Depth | 9.4mm |
