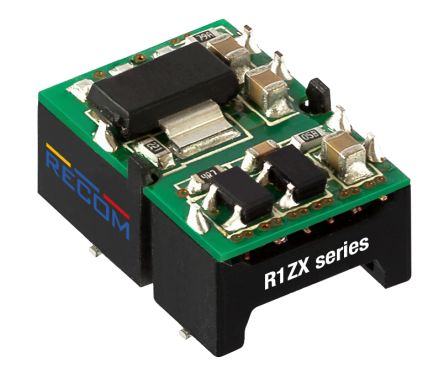

Recom R1ZX 1W Isolated DC-DC Converter Surface Mount, Voltage out 5V dc [R1ZX-0505/HP-Tray]; 184-5909
by Recom
0₫
Mã kho: 1845909
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 4.75 → 5.25 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 2kV dc |
| Power Rating | 1W |
| Output Current | 200mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 0.68 |
| Package | SMD |
| Load Regulation | 0.01 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Width | 11.1mm |
| Depth | 8.5mm |
| Length | 15.24mm |
| Series | R1ZX |
