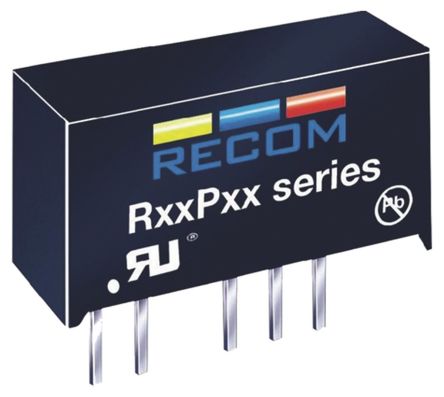

Recom 1W Isolated DC-DC Converter Through Hole, Voltage in 10.8 → 13.2 V dc, Voltage out ±12V dc [R12P12D]; 162-2745
by Recom
0₫
Mã kho: 1622745
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 10.8 → 13.2 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 6.4kV dc |
| Power Rating | 1W |
| Output Current | ±41mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.75 |
| Package | SIP |
| Load Regulation | 0.1 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +90°C |
| Length | 19.5mm |
| Depth | 12.5mm |
