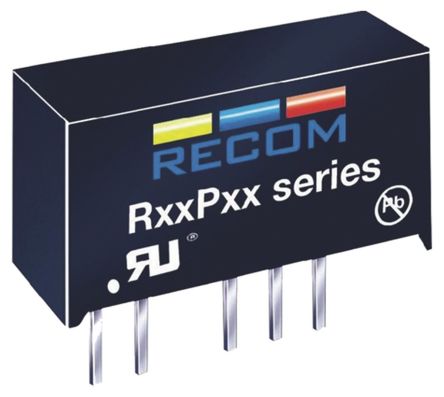

Recom 1W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out 15V dc [R05P15S]; 166-6581
by Recom
0₫
Mã kho: 1666581
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 6.4kV dc |
| Power Rating | 1W |
| Output Current | 66mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.8 |
| Package | SIP |
| Load Regulation | 0.1 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +90°C |
| Length | 19.5mm |
| Depth | 12.5mm |
