![Recom R-78T3.3-1.0/AC-TRAY 1666573](http://nguyenxuong.com/cdn/shop/products/R8111414-01_b6e6c53d-ff07-4b36-ab1e-c41004121bad_444x330.jpg?v=1594356342)

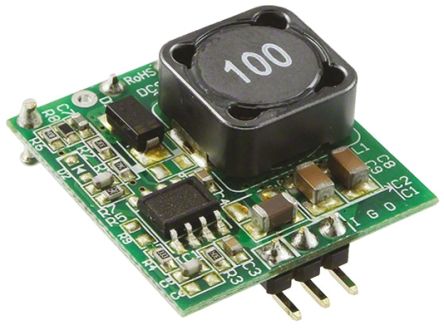

Non-Isolated DC-DC Converter, 3.3V dc Output, 1A [R-78T3.3-1.0/AC-TRAY]; 166-6573
by Recom
0₫
Mã kho: 1666573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 3.3V dc |
Output Current | 1A |
Mounting Type | Screw Mount, Surface Mount |
Number of Outputs | 1 |
Length | 23mm |
Width | 25mm |
Depth | 10mm |
Efficiency | 0.88 |
Package | SIP |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Ripple And Noise | 100mV Pk-Pk |
MTBF | 367000h |
Line Regulation | ±0.2% |
Load Regulation | ±0.4% |
Weight | 4.5g |
