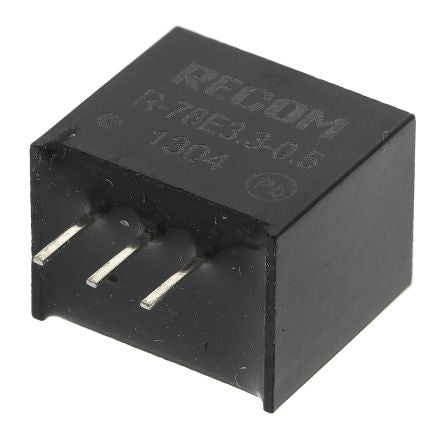

Recom Switching Regulator, 6 → 28V dc Input, 3.3V dc Output, 500mA [R-78E3.3-0.5]; 166-6497
by Recom
0₫
Mã kho: 1666497
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 6 → 28V dc |
| Output Voltage | 3.3V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Power Rating | 1.65W |
| Mounting Type | Through Hole |
| Package | SIP 3 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.88 |
| MTBF | 4185000h |
| Load Regulation | ±1% |
| Line Regulation | ±0.5% |
| Ripple And Noise | 50mV Pk-Pk |
| Length | 11.6mm |
| Width | 10.4mm |
| Depth | 8.5mm |
| Power Signal Conversion Type | DC-DC |
| Weight | 1.9g |
| Series | R-78E-0.5 |
