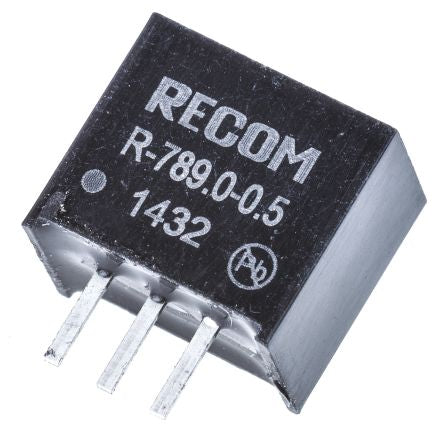

Recom Switching Regulator, 11 → 32V dc Input, 9V dc Output, 500mA [R-789.0-0.5]; 532-8066
by Recom
0₫
Mã kho: 5328066
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 11 → 32V dc |
| Output Voltage | 9V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Power Rating | 2.5W |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.96 |
| MTBF | 21098000h |
| Load Regulation | ±0.4% |
| Line Regulation | ±0.2% |
| Ripple And Noise | 25mV Pk-Pk |
| Length | 11.5mm |
| Weight | 1.9g |
| Width | 7.55mm |
| Depth | 10.2mm |
