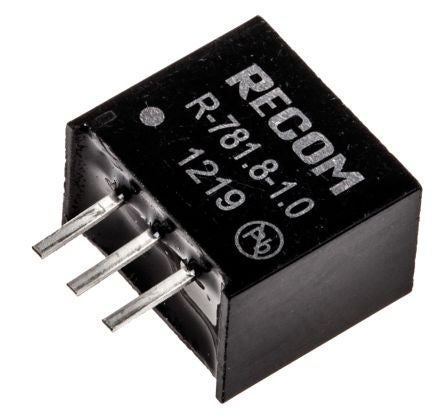

Recom Switching Regulator, 4.75 → 18V dc Input, 1.8V dc Output, 1A [R-781.8-1.0]; 672-7118
by Recom
0₫
Mã kho: 6727118
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 4.75 → 18V dc |
| Output Voltage | 1.8V dc |
| Number of Outputs | 1 |
| Output Current | 1A |
| Power Rating | 1.8W |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.82 |
| MTBF | 13338000h |
| Load Regulation | 0.004 |
| Line Regulation | 0.002 |
| Ripple And Noise | 20mV Pk-Pk |
| Depth | 10.2mm |
| Width | 7.55mm |
| Length | 11.5mm |
| Weight | 1.9g |
