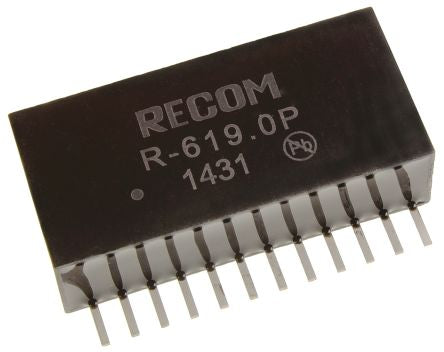

Non-Isolated DC-DC Converter, 9V dc Output, 1A [R-619.0P]; 166-8932
by Recom
0₫
Mã kho: 1668932
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 11 → 32 V dc |
| Input Voltage Nominal | 24 V dc |
| Output Voltage | 9V dc |
| Output Current | 1A |
| Power Rating | 18W |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Length | 32.2mm |
| Width | 9.1mm |
| Depth | 15mm |
| Efficiency | 0.96 |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
