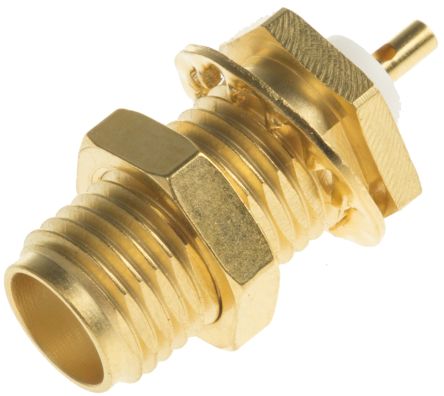

![Radiall R125553001W 2956286](http://nguyenxuong.com/cdn/shop/products/F2956286-01_444x397.jpg?v=1594033445)
Radiall Straight 50Ω Panel Mount Bulkhead Fitting SMA Bulkhead, Solder Termination [R125553001W]; 295-6286
by Radiall
0₫
Mã kho: 2956286
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Gender | Female |
Coaxial Connector Type | SMA Connector |
Mounting Type | Panel Mount |
Impedance | 50Ω |
Termination Method | Solder |
Body Orientation | Straight |
Bulkhead | Yes |
Operating Frequency | 0 → 18GHz |
Body Plating | Passivated Stainless Steel |
Minimum Operating Temperature | -65°C |
Maximum Operating Temperature | 165°C |
Contact Material | Beryllium Copper |
Contact Plating | Gold |
