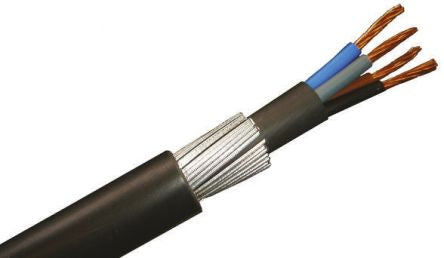

Prysmian 4 Core Black Armoured Cable With Low Smoke Zero Halogen (LSZH) Sheath , SWA Galvanised Steel Wire, 78 A [20147069]; 494-5828
by Prysmian
0₫
Mã kho: 4945828
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 10 mm² |
| Current Rating | 78 A |
| Reel Length | 50m |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Voltage Rating | 1 kV |
| Outer Diameter | 19.8mm |
| Armour Construction | Galvanised Steel Wire |
| Insulation Material | PEX |
| Minimum Bend Radius | 6 x D |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +90°C |
| Conductor Material | Annealed Copper |
| Conductor Strand Type | Stranded |
| Cable Shape | Multicore |
| Sheath Colour | Black |
| Conductor Resistance | 1.83 Ω/km |
