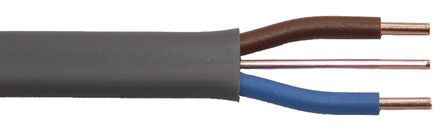

6242Y twin & earth 1.5mm cable 100m [20144942]; 468-1906
by Prysmian
0₫
Mã kho: 4681906
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2+E |
| Cross Sectional Area | 1.5 mm² |
| Sheath Colour | Grey |
| Current Rating | 20 A |
| Length | 100m |
| Voltage Rating | 500 V |
| Outer Diameter | 4.7 x 11.7mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Series | Standard |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
| Conductor Strand Type | Solid |
| American Wire Gauge | 15 AWG |
| Conductor Resistance | 12.1 Ω/km |
| Insulation Material | PVC |
| Conductor Material | Annealed Copper |
| Standards Met | BASEC |
