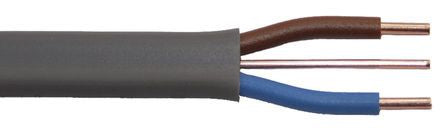

6242Y twin & earth 1mm cable 100m [20144916]; 468-1899
by Prysmian
0₫
Mã kho: 4681899
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2+E |
| Cross Sectional Area | 1 mm² |
| Sheath Colour | Grey |
| Current Rating | 16 A |
| Length | 100m |
| Voltage Rating | 500 V |
| Outer Diameter | 4.5 x 8.2mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Series | Standard |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
| Conductor Strand Type | Solid |
| Standards Met | BASEC |
| Conductor Resistance | 18.1 Ω/km |
| Insulation Material | PVC |
| Conductor Material | Annealed Copper |
| American Wire Gauge | 17 AWG |
