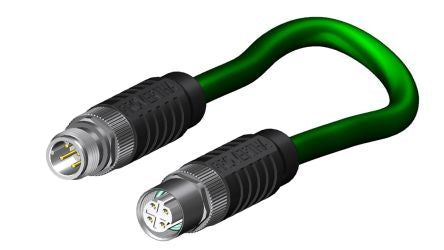

Provertha Straight M12 to Straight M12 Industrial Automation Cable Assembly, 4 Core , 3m Cable [420-300007]; 175-6268
by Provertha
0₫
Mã kho: 1756268
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Straight M12 |
| Length | 3m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 4 |
| Connector B Number of Contacts | 4 |
| Current Rating | 0.166666666666667 |
| Sheath Colour | Green |
| IP Rating | IP67 |
| Voltage Rating | 50 V dc |
| Cable Shape | Round |
| Cross Sectional Area | 0.34 mm² |
| Connector B Housing Gender | Plug |
| Connector A Housing Gender | Socket |
| Sheath Material | Thermoplastic Elastomers TPE |
| Outer Diameter | 6.5mm |
| American Wire Gauge | 22 |
| Shielding | Shielded |
| Insulation Material | TPE-U |
| Outer Sheath Material | TPE-U |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
