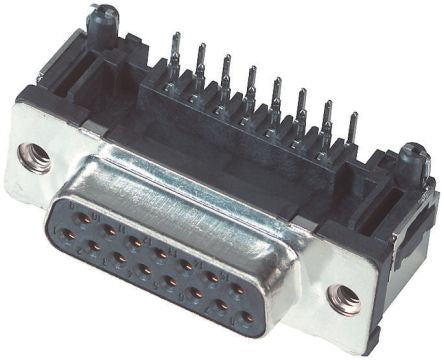

ERNI TMC-S Series, 15 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.74mm Pitch [154256]; 170-6858
by Provertha
0₫
Mã kho: 1706858
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.74mm |
| Termination Method | Solder |
| Current Rating | 3.5A |
| Housing Material | Steel |
| Length | 39.3mm |
| Width | 6.3mm |
| Depth | 12.6mm |
| Dimensions | 39.3 x 6.3 x 12.6mm |
| Minimum Operating Temperature | -55.0°C |
| Series | TMC-S |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Gold |
| Contact Material | Copper Alloy |
| Series Number | 154 |
