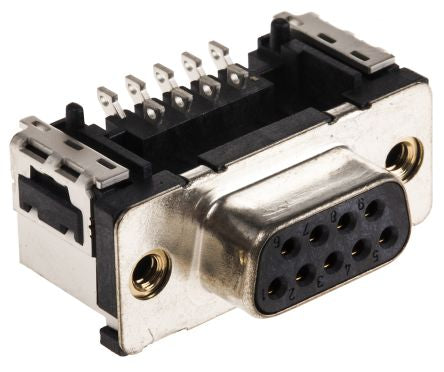

ERNI TMC Series, 9 Way Right Angle SMT PCB D-sub Connector Socket, 2.74mm Pitch, with 4-40 UNC Inserts [154236]; 454-2902
by Provertha
0₫
Mã kho: 4542902
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Pitch | 2.74mm |
| Termination Method | Solder |
| Mounting Hardware | 4-40 UNC Inserts |
| Current Rating | 3.5A |
| Housing Material | Liquid Crystal Polymer |
| Length | 31.0mm |
| Width | 14.6mm |
| Depth | 12.6mm |
| Dimensions | 31 x 14.6 x 12.6mm |
| Series Number | 154 |
| Minimum Operating Temperature | -55.0°C |
| Contact Plating | Gold |
| Series | TMC |
| Maximum Operating Temperature | +125°C |
| Contact Material | Copper Alloy |
