USB, D Sub & Computing Connectors > D Sub Connectors

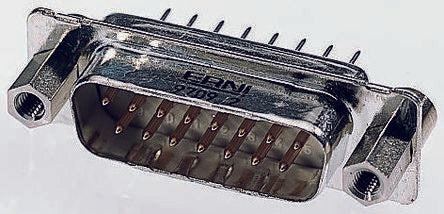

ERNI TMC Series, 15 Way Through Hole PCB D-sub Connector Plug, 2.84mm Pitch, with M3 Screwlocks [023147]; 259-7641

0₫
(Giá chưa VAT).
Mã kho: 2597641

Mã nhà sản xuất: 023147

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Number of Contacts 15
Gender Male
Body Orientation Straight
Mounting Type Through Hole
Pitch 2.84mm
Termination Method Solder
Mounting Hardware M3 Screwlocks
Current Rating 7.5A
Housing Material PBT
Voltage Rating 1.25 kV ac
Length 39.1mm
Width 10.8mm
Depth 12.5mm
Dimensions 39.1 x 10.8 x 12.5mm
Maximum Operating Temperature +125°C
Contact Plating Gold
Minimum Operating Temperature -65.0°C
Series Number 23
Series TMC
