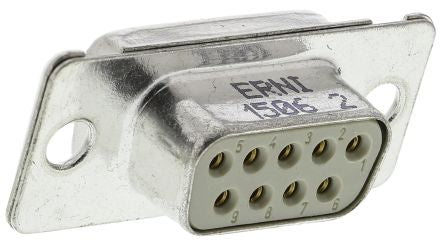

ERNI TMC Series Panel Mount, 9 Pin Standard D-Sub D-sub Connector Socket, Shell Size E [004125]; 259-2292
by Provertha
0₫
Mã kho: 2592292
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.77mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | E |
| Current Rating | 5.0A |
| Housing Material | Metal |
| Length | 30.8mm |
| Width | 12.5mm |
| Series | TMC |
| Minimum Operating Temperature | -65.0°C |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Gold |
