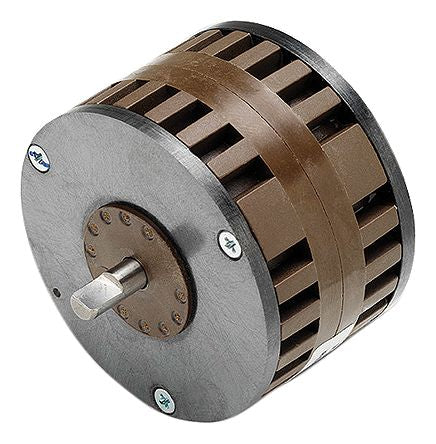

Portescap Parallel Disc Magnet Stepper Motor 3.6°, 0.36Nm, 2.3 A, 8 Wires [P532-258-0,7.10]; 892-9186
by Portescap
0₫
Mã kho: 8929186
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Step Angle | 3.6° |
| Holding Torque | 0.36Nm |
| Number Of Wires | 8 |
| Frame Size | 52 x 52mm |
| Stepper Motor Type | Disc Magnet |
| Shaft Diameter | 5mm |
| Current Rating | 2.3 A |
| Winding Arrangement | Parallel |
| Shaft Length | 19.15mm |
| Depth | 55mm |
| Number of Pole Pairs | 1 |
| Resistance Per Phase | 0.4Ω |
| Detent Torque | 28mNm |
| Standards Met | RoHS Compliant |
