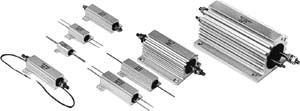

PCN RHF Series Axial Wire Wound Power Resistor, 1mΩ ±1% 10W [RHF50ML R001 F]; 161-5864
by PCN
0₫
Mã kho: 1615864
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resistance | 1 mΩ |
| Power Rating | 10W |
| Series | RHF |
| Package/Case | Aluminium Housed |
| Tolerance | ±1% |
| Technology | Wire Wound |
| Termination Style | Axial |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Minimum Temperature Coefficient | -50ppm/°C |
| Maximum Temperature Coefficient | +50ppm/°C |
| Overall Length | 49.2mm |
| Overall Width | 29.2mm |
| Dimensions | 49.2 x 29.2 x 16mm |
| Overall Height | 16mm |
