Panduit Wire Routing, Management & Protection, [ST35-075-66WH]; PAI424

Name: Panduit Wire Routing, Management & Protection, [ST35-075-66WH]; PAI424
Brand: Panduit
SKU: PAI424
Price: 126800.0 VND
Availability: InStock

by Panduit

126.800₫

(Giá chưa VAT).

Mã kho: PAI424

Mã nhà sản xuất: ST35-075-66WH

Đơn vị tính: PC

Quy cách đóng gói: 20

Tồn kho: >10

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Contractor Products / Electrical Tape / Stronhold Tm Pvc Tape: Panduit ST35-075-66WH

MÔ TẢ SẢN PHẨM

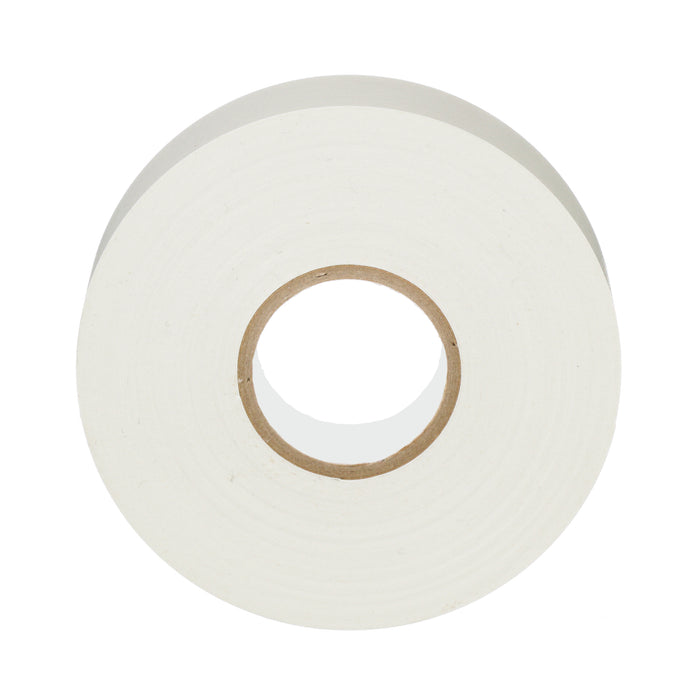

StrongHold ST35-075-66WH Professional Grade PVC Electrical Tape is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. It has excellent elasticity and insulating properties and it is .75" x 66' x .007" in size. It is w

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StrongHold™
Product Type	Professional Grade
Color	White
Material	Polyvinyl Chloride (PVC)
Overall Thickness (In.)	0.007
Overall Thickness (mm)	0.18
Overall Width (In.)	0.75
Overall Width (mm)	19
Overall Length (ft.)	66
Overall Length (m)	20
Tensile at Break (N/cm)	30
Tensile at Break (kg/mm)	0.31
Elongation at Break (%)	260
Adhesion to Steel (N/cm)	2.2
Adhesion to Steel (oz/in)	20.1
Adhesion to Backing (N/cm)	2.2
Adhesion to Backing (oz/in)	20.1
Flammability Rating	UL 510 Flame Retardant
Flagging (mm)	0
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Minimum Operating Temperature (°C)	-18
Minimum Operating Temperature (°F)	0
Dielectric Strength Standard (kV)	8
Dielectric Strength Wet (90%) (kV)	7.2
Insulation Resistance (MΩ)	1.00E+06
Standards Met	Meets ASTM D-3005, Type 1; EN 60454-3-1, Type 11; UL 510 CSA C 22.2 No 197; Meets 2000/53/EC and RoHS 2011/65/EU directives
Compliance Certifications	UL Listed/CSA Certified
Environment	Indoor/Outdoor
Application	Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
Durability (yr)	5
Tape Style	Professional Grade
Adhesive Backing Material	Rubber
