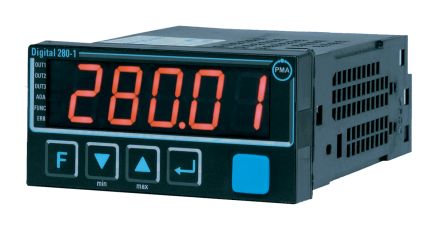

P.M.A D280-1 Temperature Indicator, 48 x 96mm, 90 → 250 V ac Supply [D280-110-0000D-000]; 736-5039
by P.M.A
0₫
Mã kho: 7365039
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Type | B Type Thermocouple, C Type Thermocouple, Current, D Type Thermocouple, E Type Thermocouple, J Type Thermocouple, K Type Thermocouple, L Type Thermocouple, N Type Thermocouple, PT1000 Type Resistance Transducer, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple, Voltage |
Supply Voltage | 90 → 250 V ac |
Range | -500 → 500 mV, -200 → +200 (Pt1000 Type Resistance Transducer) °C, -200 → +400 (T Type Thermocouple) °C, -200 → +850 (Pt100 Type Resistance Transducer) °C, -100 → +1000 (E Type Thermocouple) °C, -100 → +1200 (J Type Thermocouple) °C, -100 → +1300 (N Type Thermocouple) °C, -100 → +1350 (K Type Thermocouple) °C, -100 → +900 (L Type Thermocouple) °C, -25 → 1150 mV, -25 → 90 mV, -5 → 5 V, -2.5 → 115 mV, 0 → +1760 (R Type Thermocouple) °C, 0 → +1760 (S Type Thermocouple) °C, 0 → +1820 (B Type Thermocouple) °C, 0 → +2315 (C Type Thermocouple) °C, 0 → +2315 (D Type Thermocouple) °C, 0 → 10 V, 0 → 20 mA |
Size | 48 x 96mm |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +60°C |
Panel Depth | 118mm |
Series | D280-1 |
