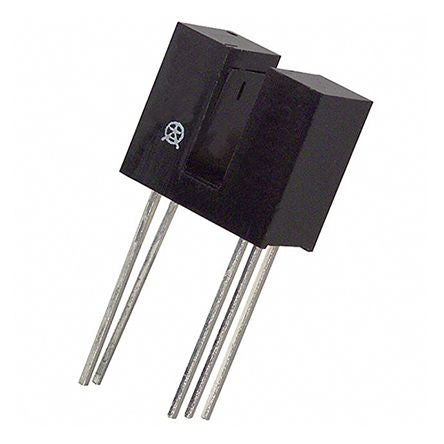

OPB962N51 Optek, Through Hole Slotted Optical Switch, Transistor Output [OPB962N51]; 908-7223
by Optek
0₫
Mã kho: 9087223
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Device | Transistor |
Typical Rise Time | 70ns |
Typical Fall Time | 70ns |
Mounting Type | Through Hole |
Package Type | Pin |
Number of Pins | 5 |
Dimensions | 12.32 x 6.35 x 10.8mm |
Height | 10.8mm |
Length | 12.32mm |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -40°C |
Slot Width | 3.18mm |
Width | 6.35mm |
Series | OPB960 |
Operating Temperature Range | -40 → +70°C |
