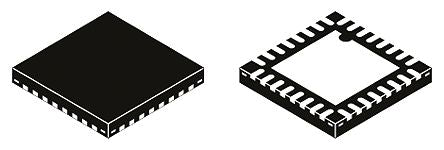

NXP, SGTL5000XNAA3 24bit- Audio Codec IC 32-Pin QFN [SGTL5000XNAA3]; 922-7563
by NXP
0₫
Mã kho: 9227563
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Codec Type | Stereo Audio |
Number of ADCs | 1 |
Number of DACs | 1 |
Number of Channels | 2 |
ADC/DAC Resolution | 24bit |
Sampling Rate | 96kHz |
Interface Type | Serial-I2C, Serial-SPI |
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 32 |
Number of ADC Inputs | 1 |
Number of DAC Outputs | 2 |
Power Supply Type | Single |
Typical Operating Supply Voltage | 1.62 → 3.6 V |
Dimensions | 5 x 5 x 0.85mm |
Maximum Operating Temperature | +85 °C |
Length | 5mm |
Height | 0.85mm |
Width | 5mm |
Minimum Operating Temperature | -40 °C |
