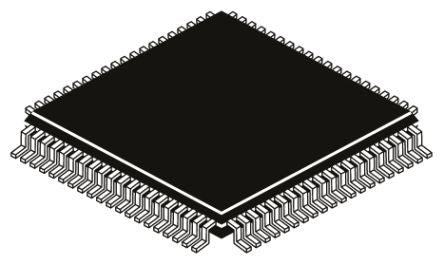

NXP S9KEAZN64AMLH, 32bit ARM Cortex M0 Microcontroller, 40MHz, 64 kB Flash, 64-Pin LQFP [S9KEAZN64AMLH]; 828-2014
by NXP
0₫
Mã kho: 8282014
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis EA |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 4 kB |
| ADC Channels | 16 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Dimensions | 10 x 10 x 1.45mm |
| Program Memory Type | Flash |
| Number of UART Channels | 3 |
| Number of Timers | 4 |
| Number of I2C Channels | 1 |
| Timer Resolution | 16bit |
| Height | 1.45mm |
| Width | 10mm |
| Timers | 4 x 16 bit |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | ARM |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +125 °C |
| Length | 10mm |
| ADCs | 1 (16 x 12 bit) |
