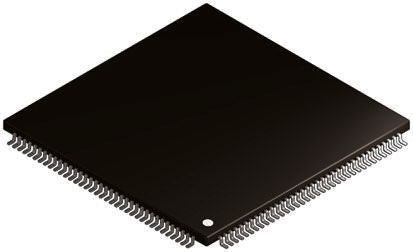

NXP S912ZVFP64F1CLQ, 16bit HCS12Z Microcontroller, 32MHz, 64 kB Flash, 144-Pin LQFP [S912ZVFP64F1CLQ]; 823-2337
by NXP
0₫
Mã kho: 8232337
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | S12 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | HCS12Z |
| Data Bus Width | 16bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 2 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 5.5 → 18 V |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (4 x 16 bit), 1 (8 x 8 bit) |
| Dimensions | 20 x 20 x 1.4mm |
| Timers | 2(8 x 16 bit) |
| Width | 20mm |
| PWM Channels | 12 |
| Number of LIN Channels | 1 |
| Height | 1.4mm |
| Timer Resolution | 16bit |
| ADCs | 1 (8 x 10 bit) |
| Length | 20mm |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Number of CAN Channels | 1 |
| Instruction Set Architecture | MCU |
| PWM Resolution | 8 bit, 16 bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Number of I2C Channels | 1 |
| Number of Timers | 2 |
