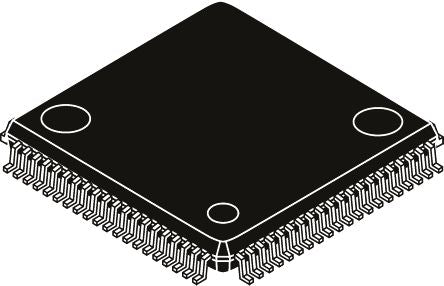

NXP S912XDG128F2MAA, 16bit HCS12X Microcontroller, 80MHz, 128 kB Flash, 80-Pin QFP [S912XDG128F2MAA]; 166-0008
by NXP
0₫
Mã kho: 1660008
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | S12 |
| Package Type | QFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | HCS12X |
| Data Bus Width | 16bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 80MHz |
| RAM Size | 12 kB |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3.15 → 5.5 V |
| Number of Timers | 2 |
| Number of I2C Channels | 1 |
| Dimensions | 14.1 x 14.1 x 2.2mm |
| Pulse Width Modulation | 1(7 x 8 bit) |
| Program Memory Type | Flash |
| PWM Resolution | 8bit |
| Instruction Set Architecture | MCU |
| Number of CAN Channels | 2 |
| Number of ADC Units | 1 |
| Width | 14.1mm |
| PWM Channels | 7 |
| Height | 2.2mm |
| Timer Resolution | 16 bit, 24 bit |
| ADCs | 1(8 x 10 bit) |
| Length | 14.1mm |
| Maximum Operating Temperature | +85 °C |
| Timers | 1(4 x 24 bit), 1(8 x 16 bit) |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
