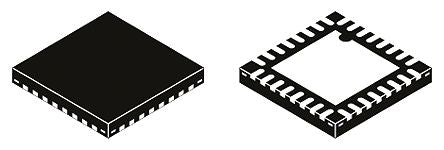

NXP MKV10Z16VFM7, 32bit ARM Cortex M0+ Microcontroller, 75MHz, 16 kB Flash, 32-Pin QFN [MKV10Z16VFM7]; 170-2974
by NXP
0₫
Mã kho: 1702974
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis V |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | ARM Cortex M0+ |
| Data Bus Width | 32bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 75MHz |
| RAM Size | 8 kB |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| PWM Channels | 10 |
| Width | 4mm |
| Timers | 1(6 x 16 bit) |
| Dimensions | 4 x 4 x 0.95mm |
| Pulse Width Modulation | 1 (10) |
| Program Memory Type | Flash |
| Number of UART Channels | 2 |
| Number of Timers | 1 |
| Number of I2C Channels | 1 |
| Number of ADC Units | 2 |
| Instruction Set Architecture | ARM v6 |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 16bit |
| Height | 0.95mm |
| Timer Resolution | 16bit |
| Length | 4mm |
| ADCs | 2 (16 x 16 bit) |
