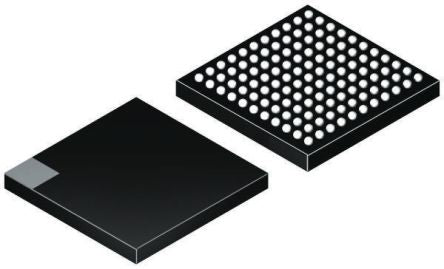

NXP MKL26Z128VMC4 ARM Cortex M0+ Microcontroller, 48MHz, 128 kB Flash, 121-Pin BGA [MKL26Z128VMC4]; 168-4002
by NXP
0₫
Mã kho: 1684002
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis L |
| Package Type | BGA |
| Mounting Type | Surface Mount |
| Pin Count | 121 |
| Device Core | ARM Cortex M0+ |
| Program Memory Size | 128 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 16 kB |
| USB Channels | 1 |
| Number of PWM Units | 1, 2 |
| ADC Channels | 1 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3.3 → 5 V |
| Dimensions | 8 x 8 x 1.38mm |
| Pulse Width Modulation | 1(6 x 16 bit), 2(2 x 16 bit) |
| Program Memory Type | Flash |
| Width | 8mm |
| PWM Channels | 2, 6 |
| Height | 1.38mm |
| ADCs | 1 (1 x 16 bit) |
| Length | 8mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | DSP |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Number of I2C Channels | 2 |
| ADC Resolution | 16bit |
| Number of UART Channels | 3 |
