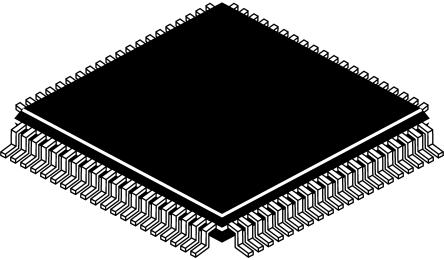

NXP MKL25Z128VLK4, 32bit ARM Cortex M0+ Microcontroller, 48MHz, 128 kB Flash, 80-Pin LQFP [MKL25Z128VLK4]; 169-7136
by NXP
0₫
Mã kho: 1697136
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis L |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | ARM Cortex M0+ |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 16 kB |
| USB Channels | 1 x OTG |
| Number of PWM Units | 3 |
| ADC Channels | 14 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| ADC Resolution | 16bit |
| Width | 12mm |
| Number of Timers | 3 |
| Number of I2C Channels | 2 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (6 x 16 bit), 1(2 x 16 bit) |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| PWM Channels | 2, 6 |
| Height | 1.45mm |
| Timer Resolution | 16bit |
| ADCs | 1(14 x 16 bit) |
| Length | 12mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Dimensions | 12 x 12 x 1.45mm |
| Timers | 1(6 x 16 bit), 2(2 x 16 bit) |
