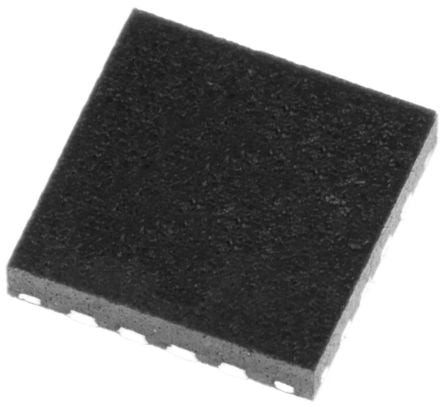

NXP MKL03Z16VFG4, 32bit ARM Cortex M0+ Microcontroller, 48MHz, 16 kB Flash, 16-Pin QFN [MKL03Z16VFG4]; 168-4058
by NXP
0₫
Mã kho: 1684058
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | Kinetis L |
Package Type | QFN |
Mounting Type | Surface Mount |
Pin Count | 16 |
Device Core | ARM Cortex M0+ |
Data Bus Width | 32bit |
Program Memory Size | 16 kB |
Maximum Frequency | 48MHz |
RAM Size | 2 kB |
Number of PWM Units | 2 |
ADC Channels | 7 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 1.71 → 3.6 V |
ADCs | 1 (7 x 12 bit) |
Height | 0.65mm |
ADC Resolution | 12bit |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | MCU |
Number of I2C Channels | 1 |
Number of ADC Units | 1 |
Maximum Operating Temperature | +105 °C |
Length | 3mm |
Number of Timers | 2 |
Number of UART Channels | 1 |
Program Memory Type | Flash |
Pulse Width Modulation | 2 |
Dimensions | 3 x 3 x 0.65mm |
Timers | 2 (2 Channel) |
Width | 3mm |
