![NXP MK22FN512VDC12 1684041](http://nguyenxuong.com/cdn/shop/products/R8232264-01_444x268.jpg?v=1594261365)

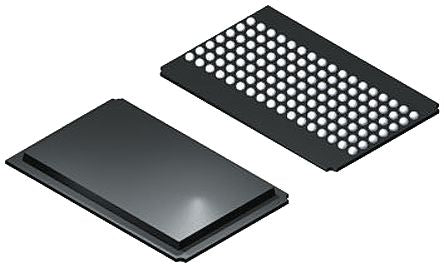

NXP MK22FN512VDC12, 32bit ARM Cortex M4 MCU, 120MHz, 512 kB Flash, 121-Pin XFBGA [MK22FN512VDC12]; 168-4041
by NXP
0₫
Mã kho: 1684041
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | Kinetis K2x |
Package Type | XFBGA |
Mounting Type | Surface Mount |
Pin Count | 121 |
Device Core | ARM Cortex M4 |
Data Bus Width | 32bit |
Program Memory Size | 512 kB |
Maximum Frequency | 120MHz |
RAM Size | 128 kB |
USB Channels | 1 |
Number of PWM Units | 2 |
ADC Channels | 2 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 1.71 → 3.6 V |
Width | 8mm |
Minimum Operating Temperature | -40 °C |
ADC Resolution | 16 |
Number of I2C Channels | 2 |
Number of Timers | 6 |
PWM Channels | 8 |
Number of UART Channels | 4 |
Program Memory Type | Flash |
Pulse Width Modulation | 2 (8 Channel) |
Dimensions | 8 x 8 x 0.5mm |
Timers | 2 (2 x 16 bit), 2(8 x 16 bit) |
Length | 8mm |
Maximum Operating Temperature | +105 °C |
Number of ADC Units | 2 |
Instruction Set Architecture | MCU |
Height | 0.5mm |
Timer Resolution | 16bit |
ADCs | 2 x 16-bit |
