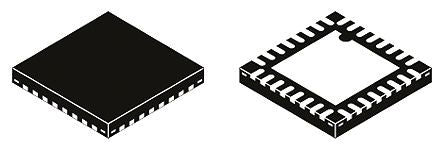

NXP MK20DX128VFM5, 32bit ARM Cortex M4 MCU, 50MHz, 160 kB Flash, 32-Pin QFN [MK20DX128VFM5]; 169-7310
by NXP
0₫
Mã kho: 1697310
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis K2x |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 160 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 18 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 1 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Number of Timers | 4 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 |
| Dimensions | 5 x 5 x 0.9mm |
| Timers | 1 x 16 bit |
| Instruction Set Architecture | RISC |
| ADCs | 1 x 16-bit |
| Length | 5mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 1 |
| Timer Resolution | 16bit |
| Height | 0.9mm |
| Width | 5mm |
| ADC Resolution | 16 |
| Minimum Operating Temperature | -40 °C |
