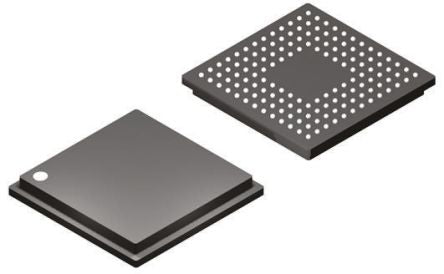

NXP MK10FN1M0VMD12, 32bit ARM Cortex M4 MCU, 120MHz, 1 MB Flash, 144-Pin MAPBGA [MK10FN1M0VMD12]; 818-1201
by NXP
0₫
Mã kho: 8181201
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis K1x |
| Package Type | MAPBGA |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 1 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 128 kB |
| USB Channels | 2 |
| Number of PWM Units | 1 |
| ADC Channels | 4 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Number of UART Channels | 6 |
| Number of I2C Channels | 2 |
| Number of Timers | 9 |
| ADC Resolution | 16 |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 4 |
| Number of CAN Channels | 2 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 |
| Dimensions | 13 x 13 x 1.7mm |
| Timers | 9 x 16 bit |
| Width | 13mm |
| Height | 1.7mm |
| Timer Resolution | 16bit |
| ADCs | 4 x 16-bit |
| Length | 13mm |
