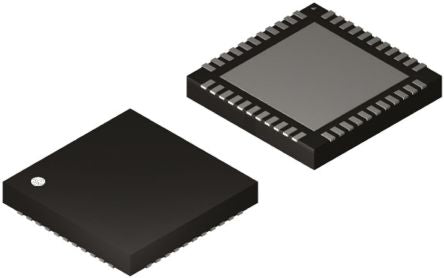

NXP MC9S08AW60CFGE, 8bit S08 Microcontroller, 40MHz, 63.28 kB Flash, 44-Pin LQFP [MC9S08AW60CFGE]; 397-212
by NXP
0₫
Mã kho: 397212
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | HCS08 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | S08 |
| Data Bus Width | 8bit |
| Program Memory Size | 63.28 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 2.048 kB |
| Number of PWM Units | 2 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Instruction Set Architecture | CISC |
| ADC Resolution | 10bit |
| Number of I2C Channels | 1 |
| Program Memory Type | Flash |
| Number of Timers | 6 |
| Number of UART Channels | 2 |
| Dimensions | 10 x 10 x 1.4mm |
| Timers | 6 x 16 bit |
| Height | 1.4mm |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Timer Resolution | 16bit |
| Number of ADC Units | 1 |
| Length | 10mm |
| ADCs | 8 x 10 bit |
| PWM Channels | 2, 4 |
| Width | 10mm |
| Maximum Operating Temperature | +85 °C |
| Pulse Width Modulation | 2 x 16 bit, 4 x 16 bit |
