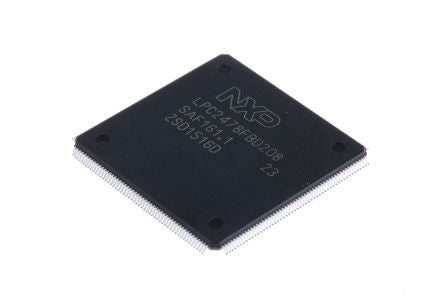

NXP LPC2478FBD208,551, 16/32bit ARM7TDMI-S Microcontroller, 72MHz, 512 kB Flash, 208-Pin LQFP [LPC2478FBD208,551]; 103-8063
by NXP
0₫
Mã kho: 1038063
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | LPC24 |
Package Type | LQFP |
Mounting Type | Surface Mount |
Pin Count | 208 |
Device Core | ARM7TDMI-S |
Data Bus Width | 16/32bit |
Program Memory Size | 512 kB |
Maximum Frequency | 72MHz |
RAM Size | 4 kB, 98 kB |
USB Channels | 1 x Device, 1 x OHCI, 1 x OTG |
Number of PWM Units | 1 |
ADC Channels | 8 |
Number of SPI Channels | 3 |
Typical Operating Supply Voltage | 3.3 V |
Number of I2C Channels | 3 |
Number of Timers | 4 |
Number of Ethernet Channels | 1 |
Number of UART Channels | 4 |
Instruction Set Architecture | RISC |
Minimum Operating Temperature | -40 °C |
Length | 28.1mm |
ADCs | 8 x 10 bit |
ADC Resolution | 10bit |
Timer Resolution | 32bit |
Height | 1.45mm |
PWM Channels | 2 |
Width | 28.1mm |
Maximum Operating Temperature | +85 °C |
Timers | 4 x 32 bit |
Dimensions | 28.1 x 28.1 x 1.45mm |
Number of ADC Units | 1 |
Program Memory Type | Flash |
Pulse Width Modulation | 2(PWM) |
Number of CAN Channels | 2 |
