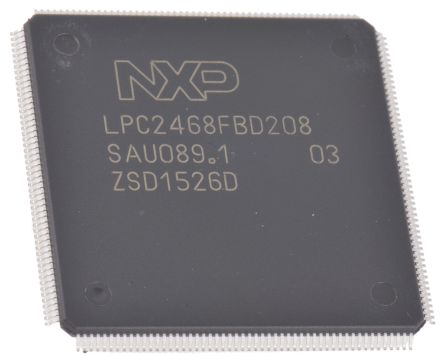

NXP LPC2468FBD208,551, 16/32bit ARM7TDMI-S Microcontroller, 72MHz, 512 kB Flash, 208-Pin LQFP [LPC2468FBD208,551]; 725-7802
by NXP
0₫
Mã kho: 7257802
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | LPC24 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 208 |
| Device Core | ARM7TDMI-S |
| Data Bus Width | 16/32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 72MHz |
| RAM Size | 4 kB, 98 kB |
| USB Channels | 1 x Device, 1 x OHCI, 1 x OTG |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.3 V |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Number of CAN Channels | 2 |
| PWM Channels | 2 |
| Width | 28.1mm |
| Pulse Width Modulation | 2(PWM) |
| Number of ADC Units | 1 |
| Length | 28.1mm |
| ADCs | 8 x 10 bit |
| Number of I2C Channels | 3 |
| Number of Timers | 4 |
| Number of Ethernet Channels | 1 |
| Number of UART Channels | 4 |
| Program Memory Type | Flash |
| Dimensions | 28.1 x 28.1 x 1.45mm |
| Timers | 4 x 32 bit |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 32bit |
| Height | 1.45mm |
