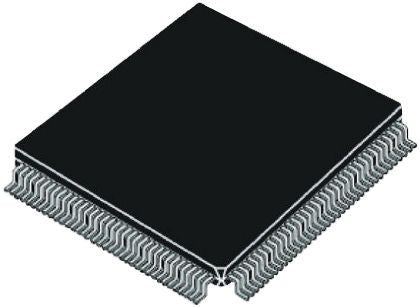

NXP LPC2378FBD144,551, 16/32bit ARM7TDMI-S Microcontroller, 72MHz, 512 kB Flash, 144-Pin LQFP [LPC2378FBD144,551]; 476-218
by NXP
0₫
Mã kho: 476218
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | LPC23 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM7TDMI-S |
| Data Bus Width | 16/32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 72MHz |
| RAM Size | 58 kB |
| USB Channels | 1 x Device |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 4 |
| Number of Ethernet Channels | 1 |
| Number of Timers | 4 |
| Number of I2C Channels | 3 |
| Dimensions | 20.1 x 20.1 x 1.45mm |
| Timers | 4 x 32 bit |
| Program Memory Type | Flash |
| Maximum Number of Ethernet Channels | 1 |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Height | 1.45mm |
| Timer Resolution | 32bit |
| Minimum Operating Temperature | -40 °C |
| Pulse Width Modulation | 1(2 Channel) (Motor Control) |
| Width | 20.1mm |
| PWM Channels | 2 |
| ADCs | 8 x 10 bit |
| Maximum Operating Temperature | +85 °C |
| Length | 20.1mm |
| Number of ADC Units | 1 |
| Number of CAN Channels | 2 |
