![NXP LPC2119FBD64/01,15 1242325](http://nguyenxuong.com/cdn/shop/products/F7257758-01_444x343.jpg?v=1594123667)

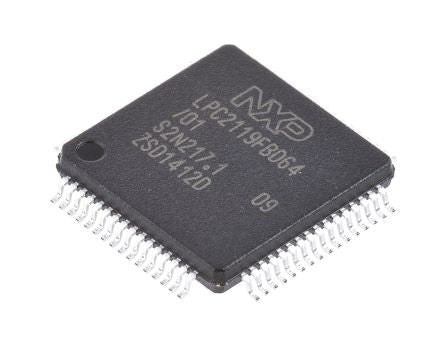

NXP LPC2119FBD64/01,15, 16 bit, 32 bit ARM7TDMI-S Microcontroller, 60MHz, 128 kB Flash, 64-Pin LQFP [LPC2119FBD64/01,15]; 124-2325
by NXP
0₫
Mã kho: 1242325
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | LPC21 |
Package Type | LQFP |
Mounting Type | Surface Mount |
Pin Count | 64 |
Device Core | ARM7TDMI-S |
Data Bus Width | 16 bit, 32 bit |
Program Memory Size | 128 kB |
Maximum Frequency | 60MHz |
RAM Size | 16 kB |
Number of PWM Units | 1 |
ADC Channels | 4 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 1.65 → 1.95 V, 3 → 3.6 V |
Width | 10.1mm |
Timers | 2 x 32 bit |
Dimensions | 10.1 x 10.1 x 1.45mm |
Pulse Width Modulation | 1(6 Channel) (Motor Control) |
Program Memory Type | Flash |
Height | 1.45mm |
Timer Resolution | 32bit |
Number of Timers | 2 |
ADCs | 4 x 10 bit |
Length | 10.1mm |
PWM Channels | 6 |
Maximum Operating Temperature | +85 °C |
Number of UART Channels | 1 |
Number of I2C Channels | 1 |
Number of ADC Units | 1 |
Minimum Operating Temperature | -40 °C |
ADC Resolution | 10bit |
Number of CAN Channels | 2 |
Instruction Set Architecture | RISC |
