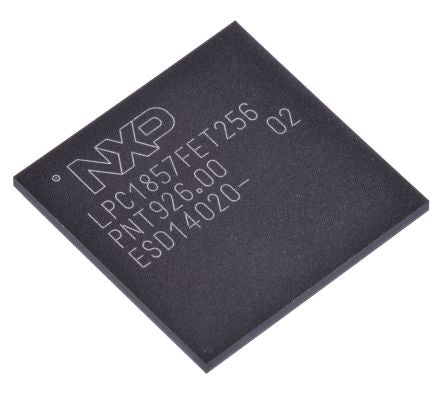

NXP LPC1857FET256,551, 32bit ARM Cortex M3 Microcontroller, 150MHz ROMLess, 256-Pin LBGA [LPC1857FET256,551]; 103-8088
by NXP
0₫
Mã kho: 1038088
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | LPC18 |
| Package Type | LBGA |
| Mounting Type | Surface Mount |
| Pin Count | 256 |
| Device Core | ARM Cortex M3 |
| Data Bus Width | 32bit |
| Maximum Frequency | 150MHz |
| RAM Size | 200 kB |
| USB Channels | 2 x Device, 2 x Host, 2 x OTG |
| Number of PWM Units | 1 |
| ADC Channels | 2 |
| Number of SPI Channels | 4 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of I2C Channels | 2 |
| Number of Timers | 4 |
| Dimensions | 17.2 x 17.2 x 1.1mm |
| Pulse Width Modulation | 1(Motor Control) |
| Program Memory Type | ROMLess |
| Number of UART Channels | 4 |
| Number of Ethernet Channels | 1 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Timers | 1(4 Channel) |
| Number of USART Channels | 3 |
| Width | 17.2mm |
| PWM Channels | 1 |
| Number of CAN Channels | 2 |
| Height | 1.1mm |
| ADCs | 2 x 10 bit |
| Length | 17.2mm |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
