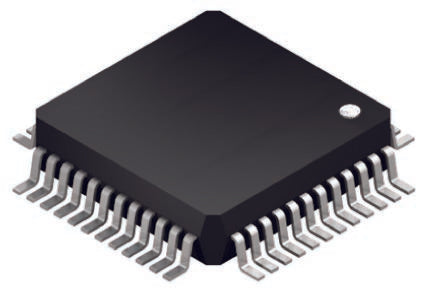

![NXP LPC11U37FBD48/401, 1038106](http://nguyenxuong.com/cdn/shop/products/LQFP-48_28712c3d-c18b-4443-babe-4304caa055c1_424x288.jpg?v=1594242930)
NXP LPC11U37FBD48/401,, 32bit ARM Cortex M0 Microcontroller, 50MHz, 128 kB Flash, 48-Pin LQFP [LPC11U37FBD48/401,]; 103-8106
by NXP
0₫
Mã kho: 1038106
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | LPC11U |
Package Type | LQFP |
Mounting Type | Surface Mount |
Pin Count | 48 |
Device Core | ARM Cortex M0 |
Data Bus Width | 32bit |
Program Memory Size | 128 kB |
Maximum Frequency | 50MHz |
RAM Size | 10 kB |
USB Channels | 1 |
ADC Channels | 8 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 3.3 V |
Dimensions | 7.1 x 7.1 x 1.45mm |
Program Memory Type | Flash |
Number of Timers | 4 |
Number of I2C Channels | 1 |
Timer Resolution | 16 bit, 32 bit |
Height | 1.45mm |
Width | 7.1mm |
Number of USART Channels | 1 |
Timers | 2 x 16 bit, 2 x 32 bit |
ADCs | 1 (8 x 10 bit) |
Length | 7.1mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
ADC Resolution | 10bit |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | RISC |
