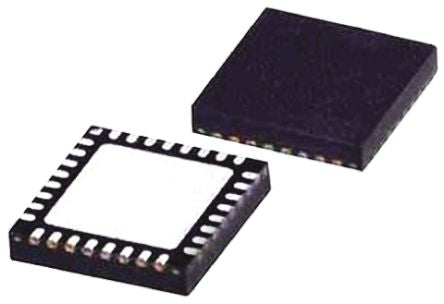

NXP LPC11U24FHN33/401, 32bit Cortex-M0 Microcontroller, 50MHz, 24 kB Flash, 33-Pin HVQFN [LPC11U24FHN33/401]; 755-9947
by NXP
0₫
Mã kho: 7559947
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | LPC11U |
| Package Type | HVQFN |
| Mounting Type | Surface Mount |
| Pin Count | 33 |
| Device Core | Cortex-M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 24 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 8 kB |
| USB Channels | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| ADC Resolution | 10bit |
| Instruction Set Architecture | ARM |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Timer Resolution | 16 bit, 32 bit |
| Height | 0.85mm |
| Number of USART Channels | 5 |
| Timers | 2 x 16 bit, 2 x 32 bit |
| Dimensions | 7 x 7 x 0.85mm |
| Number of Timers | 4 |
| Number of I2C Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Width | 7mm |
| Number of ADC Units | 8 |
| ADCs | 1 (8 x 10 bit) |
| Length | 7mm |
