![NXP BYV79E-200,127 1037580](http://nguyenxuong.com/cdn/shop/products/F5444635-01_c5fb77b1-1cec-4884-84ca-9b51fe9351c4_444x231.jpg?v=1594153744)

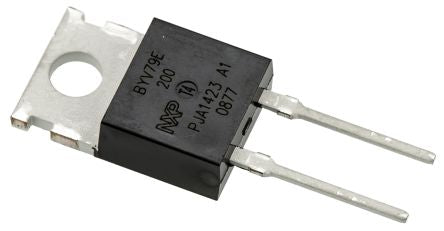

NXP 200V 14A, Diode, 2-Pin TO-220AC BYV79E-200,127 [BYV79E-200,127]; 103-7580
by NXP
0₫
Mã kho: 1037580
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Through Hole |
Package Type | TO-220AC |
Maximum Continuous Forward Current | 14A |
Peak Reverse Repetitive Voltage | 200V |
Diode Configuration | Single |
Rectifier Type | Switching |
Diode Type | Silicon Junction |
Pin Count | 2 |
Maximum Forward Voltage Drop | 1.4V |
Number of Elements per Chip | 1 |
Diode Technology | Silicon Junction |
Peak Reverse Recovery Time | 30ns |
Peak Non-Repetitive Forward Surge Current | 160A |
